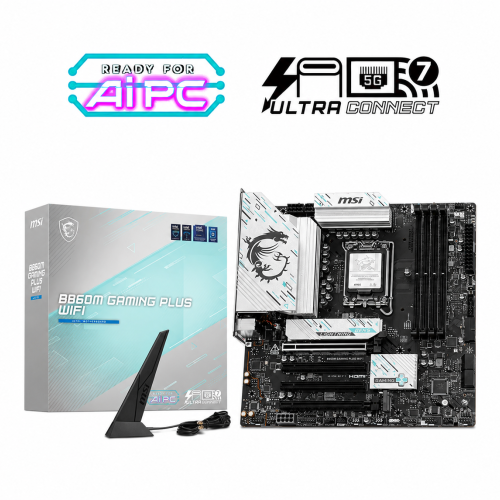

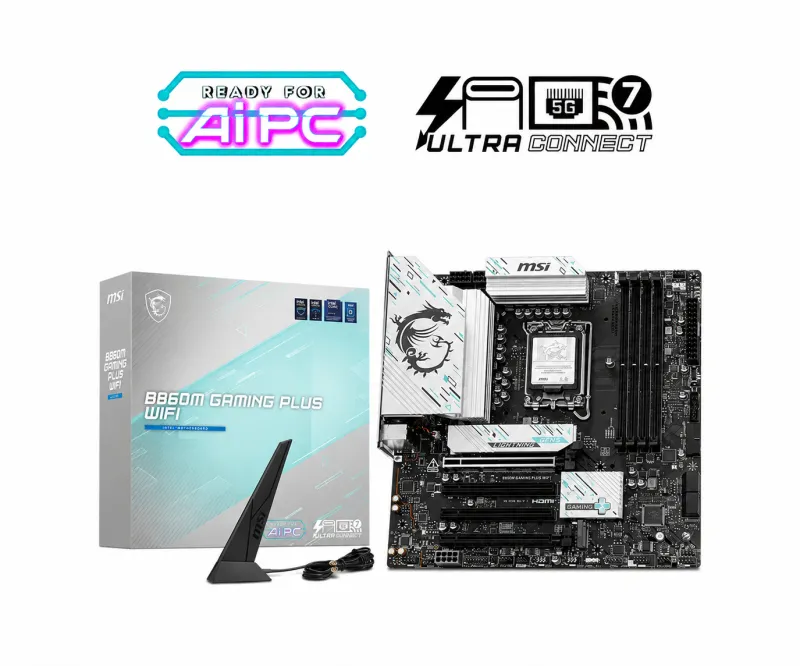

Mainboard (Intel) B860M GAMING PLUS WIFI DDR5

Bình luận: 0 | Lượt xem: 68

5.550.000đ

( Đã bao gồm VAT )

5.890.000đ Tiết kiệm: 340.000đ

Quà tặng và ưu đãi kèm theo

🔥 Nhập Hội Build PC 🔥 giảm ngay 500K khi xây dựng cấu hình máy tính + nhiều quà tặng hấp dẫn

Tặng Balo Gaming cao cấp - khi mua laptop gaming

Tặng Balo khi mua LAPTOP CŨ

Cài đặt và vệ sinh máy trọn đời tại Khoá Vàng

Hỗ trợ kỹ thuật từ xa MIỄN PHÍ suốt đời máy

Cài đặt Windows + Phần Mềm đầy đủ khi mua

Miễn phí GIAO HÀNG TẬN NƠI ở HCM

MUA NGAY Giao hàng tận nơi nhanh chóng

Gọi lại cho tôi

MUA TRẢ GÓP Qua công ty tài chính

Liên hệ mua hàng - tư vấn

14A Nguyễn Đình Chiểu, Tân Định

0931 333 027 - Mr. Luân
0931 333 017 - Mr. Toàn
0931 333 028 - Mr. Chương
0931 333 038 - Mr. Luân
0931 333 014 - Mr. Vũ
0931 333 018 - Mr. Tùng

283/47 CMT8, Hoà Hưng

0931 333 016 - Mr. Tài
0931 333 024 - Mr. Vỹ

Yên tâm mua hàng tại Khóa Vàng

Giao hàng miễn phí HCM

Ship COD toàn quốc

ProSupport 24h Workstation desktop

Bảo Hành 12 Tháng Cho Laptop

Thông số kỹ thuật

STT	THÔNG SỐ	THÔNG TIN
1	Tên sản phẩm:	B860M GAMING PLUS WIFI
2	Hãng sản xuất	MSI
3	Socket	LGA 1851 hỗ trợ CPU Intel® Core™ Ultra Processors (Series 2)
4	Bảo hành	36 tháng

Mô tả chi tiết

Chipset	INTEL B860
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel^® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel^® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN	Intel^® Killer™ E5000 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 3x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel^® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Display Port Clear CMOS Button 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 2.0 USB 5Gbps (Type-A) USB 5Gbps (Type-C) USB 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit
