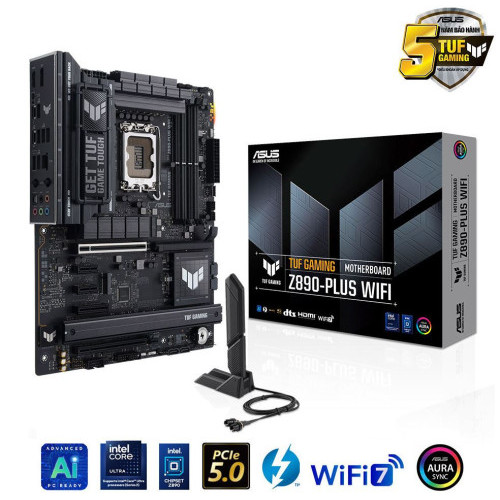

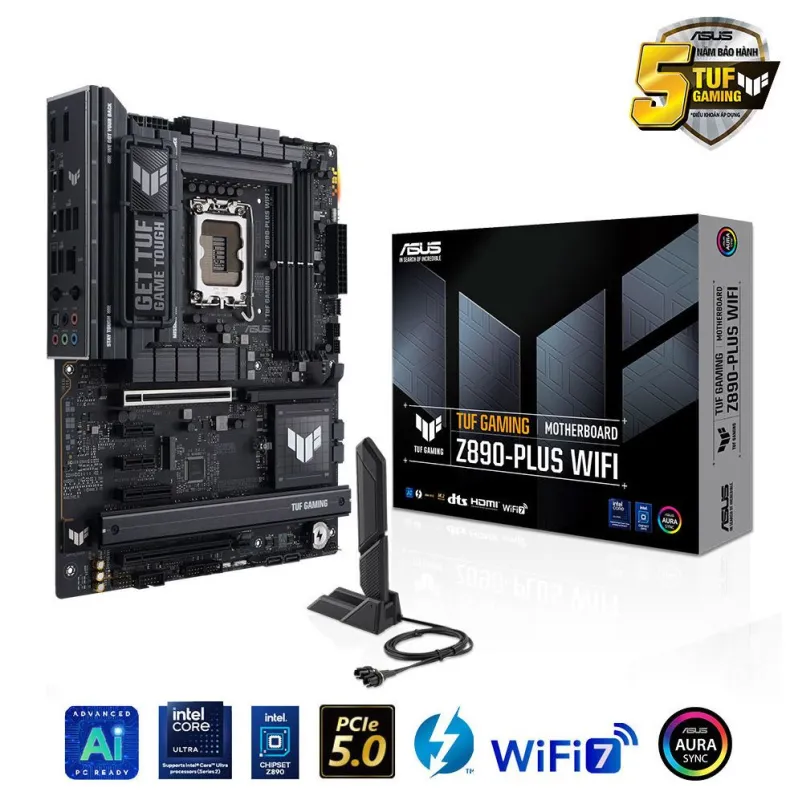

Mainboard (Intel) ASUS TUF Gaming Z890-PLUS WIFI DDR5
Bạn cảm thấy sản phẩm này như thế nào? (chọn sao nhé):
Rất tệ
Tệ
Bình thường
Tốt
Rất tốt
Từ khóa được tìm kiếm nhiều nhất
Mainboard (Intel) ASUS TUF Gaming Z890-PLUS WIFI DDR5
Bình luận: 0 |
Lượt xem: 66
8.799.000đ
( Đã bao gồm VAT )
Quà tặng và ưu đãi kèm theo
Tặng Balo khi mua LAPTOP CŨ
Cài đặt và vệ sinh máy trọn đời tại Khoá Vàng
Hỗ trợ kỹ thuật từ xa MIỄN PHÍ suốt đời máy
Cài đặt Windows + Phần Mềm đầy đủ khi mua
Miễn phí GIAO HÀNG TẬN NƠI ở HCM
Thông số kỹ thuật
| STT | THÔNG SỐ | THÔNG TIN |
|---|---|---|
| 1 | Tên sản phẩm: | ASUS TUF Gaming Z890-PLUS WIFI DDR5 |
| 2 | Thương hiệu: | ASUS TUF |
| 3 | Socket | Hỗ trợ Bộ xử lý Intel Core™ Ultra (Series 2), LGA1851 |
| 4 | Hệ điều hành | Windows 11 (22H2 & later) |
| 5 | Bảo hành | 5 năm |
Mô tả chi tiết
| Hãng sản xuất | ASUS |
| Series | TUF GAMING |
| Model | TUF GAMING Z890-PLUS WIFI (90MB1IQ0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2), LGA1851* |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI port*** | |
| 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs**** | |
| 1 x USB 20Gbps port supports USB Type-C display output***** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI 2.1. | |
| ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. | |
| ***** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| ****** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 1 x PCIe 5.0 x16 slot | |
| Intel Z890 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x4 slot | |
| 2 x PCIe 4.0 x1 slots | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(series 2) * | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| Intel Z890 Chipset | |
| M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| TUF LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 8 ports) |
| 1 x Thunderbolt 4 port (1 x USB Type-C) | |
| 1 x USB 20Gbps port (1 x USB Type-C) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| - Audio Shielding | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Audio cover | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| Back Panel I/O Ports | 1 x Thunderbolt 4 USB Type-C port |
| 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI port | |
| 1 x Wi-Fi module | |
| 1 x Intel 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thunderbolt (USB4) header | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
