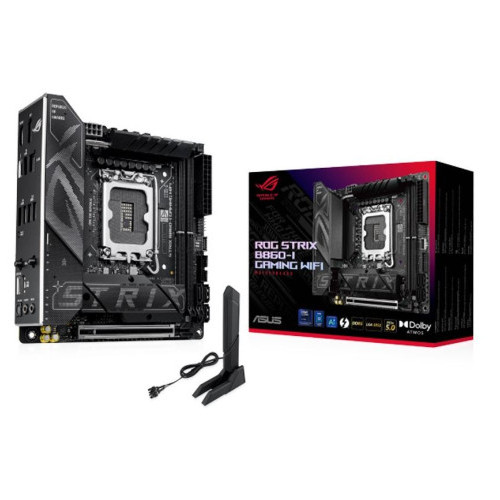

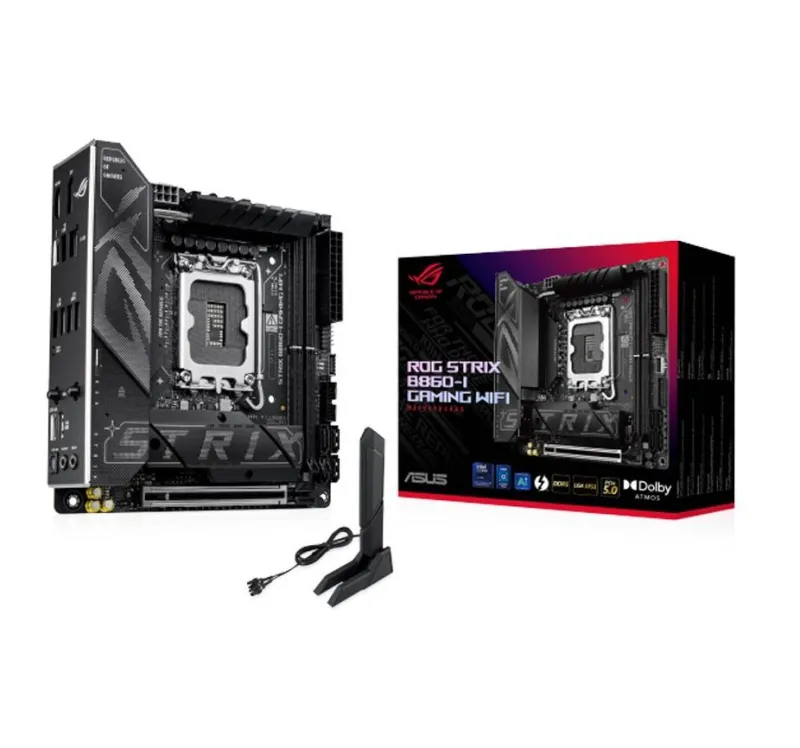

Mainboard (Intel) Asus ROG STRIX B860-I GAMING WIFI DDR5 (ITX)

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2)
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B860 Chipset

RAM hỗ trợ

2 x DIMM slots, max. 128GB, DDR5

Supports up to 9066+MT/s (OC), Non-ECC
Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile
(XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)

Đồ họa

1 x DisplayPort
1 x HDMI port
1 x Intel Thunderbolt 4 supports
DisplayPort and Thunderbolt video outputs

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot

Ổ cứng hỗ trợ

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

ETHERNET

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 8 ports)
1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Cổng kết nối (Internal)

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

Cổng kết nối (Back Panel)

1 x Thunderbolt 4 port (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button

LAN / Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4

Âm thanh

Realtek ALC1220P 7.1 Surround Sound High

Definition Audio CODEC
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphone and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

Kích cỡ

Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
