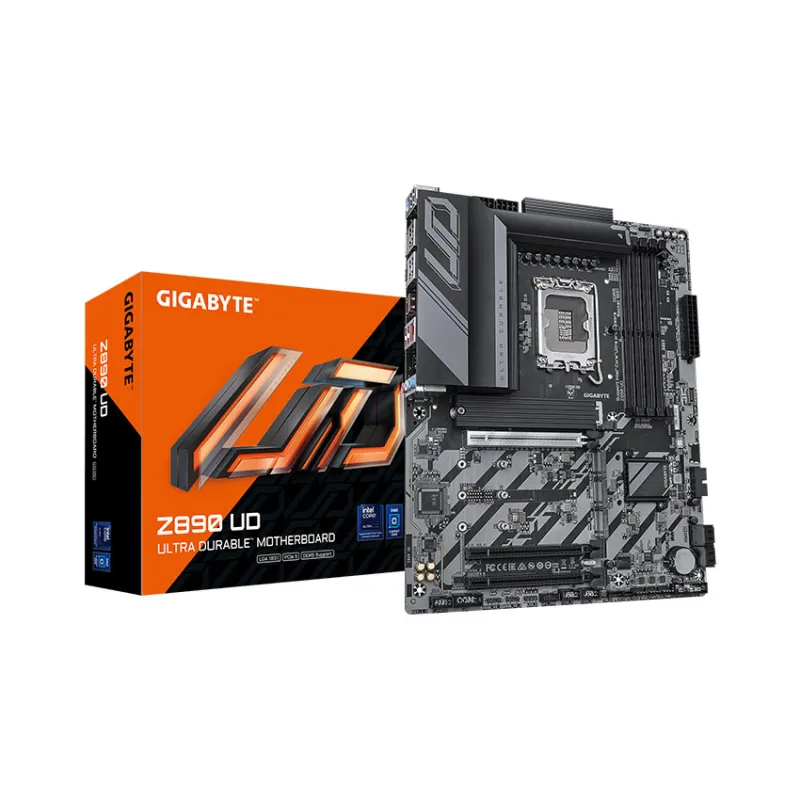

Mainboard (Intel) Gigabyte Z890 UD

Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

CPU:– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

CPU:

– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

– 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

CPU:

– 1 x USB4® USB Type-C® port on the back panel

hipset:

– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header1 x CPU fan/water cooling pump header

2 x system fan headers2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header

3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x power button

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

4 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x DisplayPort (Note)

4 x USB 3.2 Gen 1 ports1 x USB4® USB Type-C® port (DisplayPort (Note))

1 x USB 3.2 Gen 2 Type-A port (red)

1 x RJ-45 port2 x SMA antenna connectors (2T2R)

3 x audio jacks(Note)

Actual support may vary by CPU.

Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detection

Fan fail warning

Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup

Norton® Internet Security (OEM version)

LAN bandwidth management software
